Senis SEN-3D-CAM Magnetic Field Camera

SEN-3D-CAM is the World’s First True 3D Magnetic Field Camera. It simultaneously measures all three magnetic field components (Bx, By, Bz) using Senis proprietary 3D Hall technology. The camera provides comprehensive and
accurate pictures of magnetic fields in three dimensions.

With a spatial resolution of 100 μm and a tiny measurement volume of 27μm x 9μm x 4μm in each pixel, SEN-3D-CAM offers unprecedented precision in magnetic field measurement. This is particularly important if you need to measure complex fields with high field gradients. With 16,000 pixels, SEN-3DCAM can acquire a full magnetic image within just 1 second, making it ideal for both inline and offline inspection of magnetic systems.

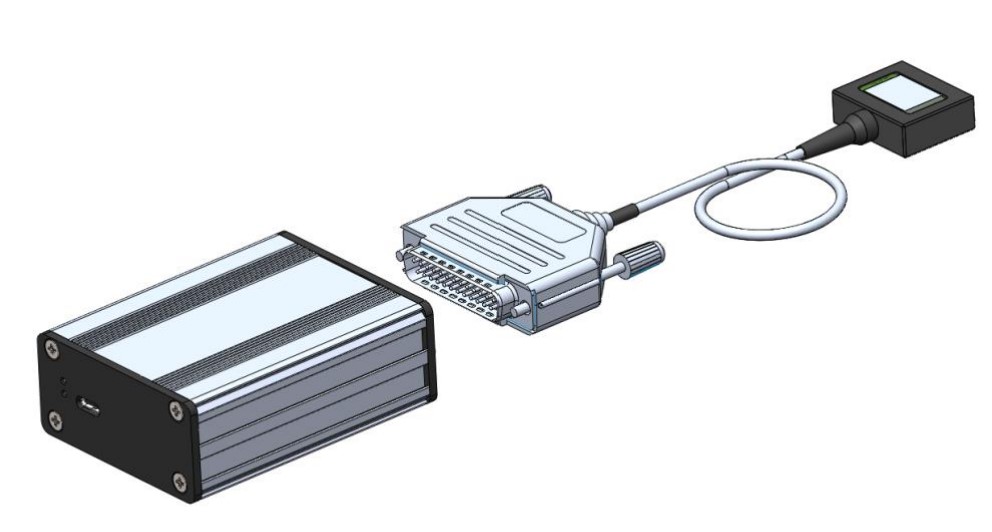

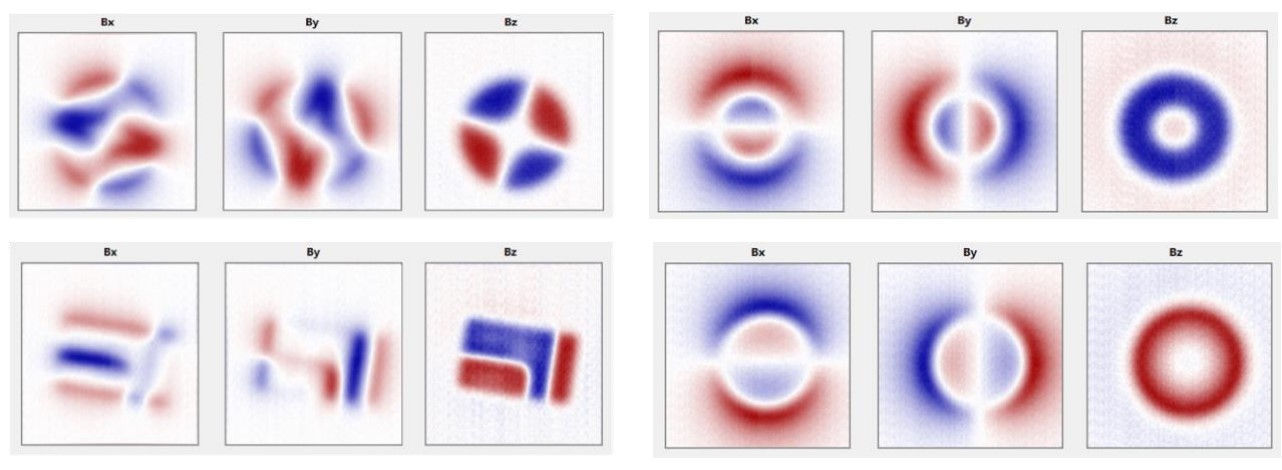

The direct output of SEN-3D-CAM is in 2D images, with all three field components accurately calibrated. These calibrated images are streamed through a USB-C connection, providing real-time data for analysis and visualization. In addition, the optional Senis 2D Vision Commander Software is available for more sophisticated magnetic image analysis, allowing for advanced magnetic data processing and interpretation.

Experience the future of magnetic field measurement with SEN-3D-CAM, the world’s first true 3D magnetic field camera. With its unmatched precision, high acquisition rate, and advanced software options, SEN-3D-CAM is the ultimate tool for magnetic field analysis in research, industry, and beyond. Stay ahead of the curve and unlock new possibilities with SEN-3D-CAM today.

Features:

Fast, true and precise 3D magnetic field camera
Measures all three 3 field components of a magnetic field (Bx, By, Bz)
Very high magnetic and spatial resolution (16k pixels)
World’s smallest sensitive volume of 27μm x 9μm x 4μm in each pixel
High image acquisition rate of 1 image/s

Applications:

Fast, true and precise 3D magnetic field mapping
Fast, true and precise Inline Inspection
Fast characterization and quality control of permanent magnets
Development of magnet systems
Application in laboratories and in production lines

Tech Support

Manuals & Datasheets

Pricing

	Part No.	Description	Qty	Price
SEN-3D-CAM
Checkbox	SEN-3D-CAM	SENIS 3D Magnetic Camera. – Integrated Senis 3D Hall Sensor – 128 x 128 pixels (16’384 3D Hall pixels) – Field Sensitive Volume: 27μm x 9μm x 4μm in each pixel – Spatial resolution (pitch): 100um – Calibrated true Bx/By/Bz for each individual pixel – Active area : 12.8 x 12.8 mm – Measurement ranges: 100mT and 350mT – Camera holder – Documentation in english – Warranty period: 12 months	Quantity	$58,290.00 Select Product	Description SENIS 3D Magnetic Camera. – Integrated Senis 3D Hall Sensor – 128 x 128 pixels (16’384 3D Hall pixels) – Field Sensitive Volume: 27μm x 9μm x 4μm in each pixel – Spatial resolution (pitch): 100um – Calibrated true Bx/By/Bz for each individual pixel – Active area : 12.8 x 12.8 mm – Measurement ranges: 100mT and 350mT – Camera holder – Documentation in english – Warranty period: 12 months Select Product Qty Select Quantity
Checkbox	SEN-3D-CAM-SW	SENIS 3D Magnetic Camera Software. – Automatic import, display and analysis of the measurement – 2D images of selected components : Bx, By, Bz, Bxy, Bxz, Byz, Btot, Bcombined – Display in cartesian, cylindrical and spherical coordinates – Line cuts and selected area analysis with graph, maximal, minimal, mean, peak-to-peak value, – Standard export and reporting options	Quantity	$9,108.00 Select Product	Description SENIS 3D Magnetic Camera Software. – Automatic import, display and analysis of the measurement – 2D images of selected components : Bx, By, Bz, Bxy, Bxz, Byz, Btot, Bcombined – Display in cartesian, cylindrical and spherical coordinates – Line cuts and selected area analysis with graph, maximal, minimal, mean, peak-to-peak value, – Standard export and reporting options Select Product Qty Select Quantity

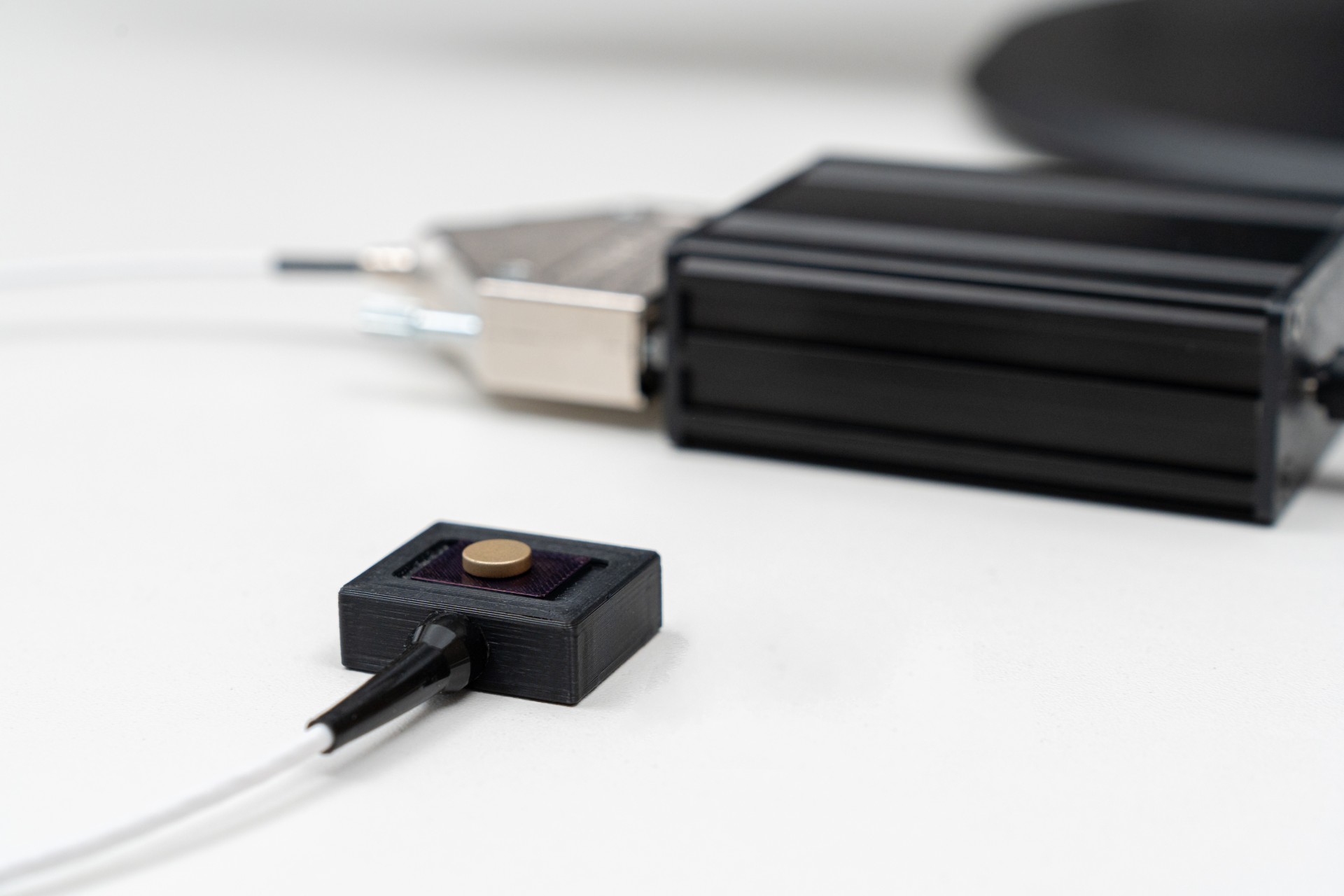

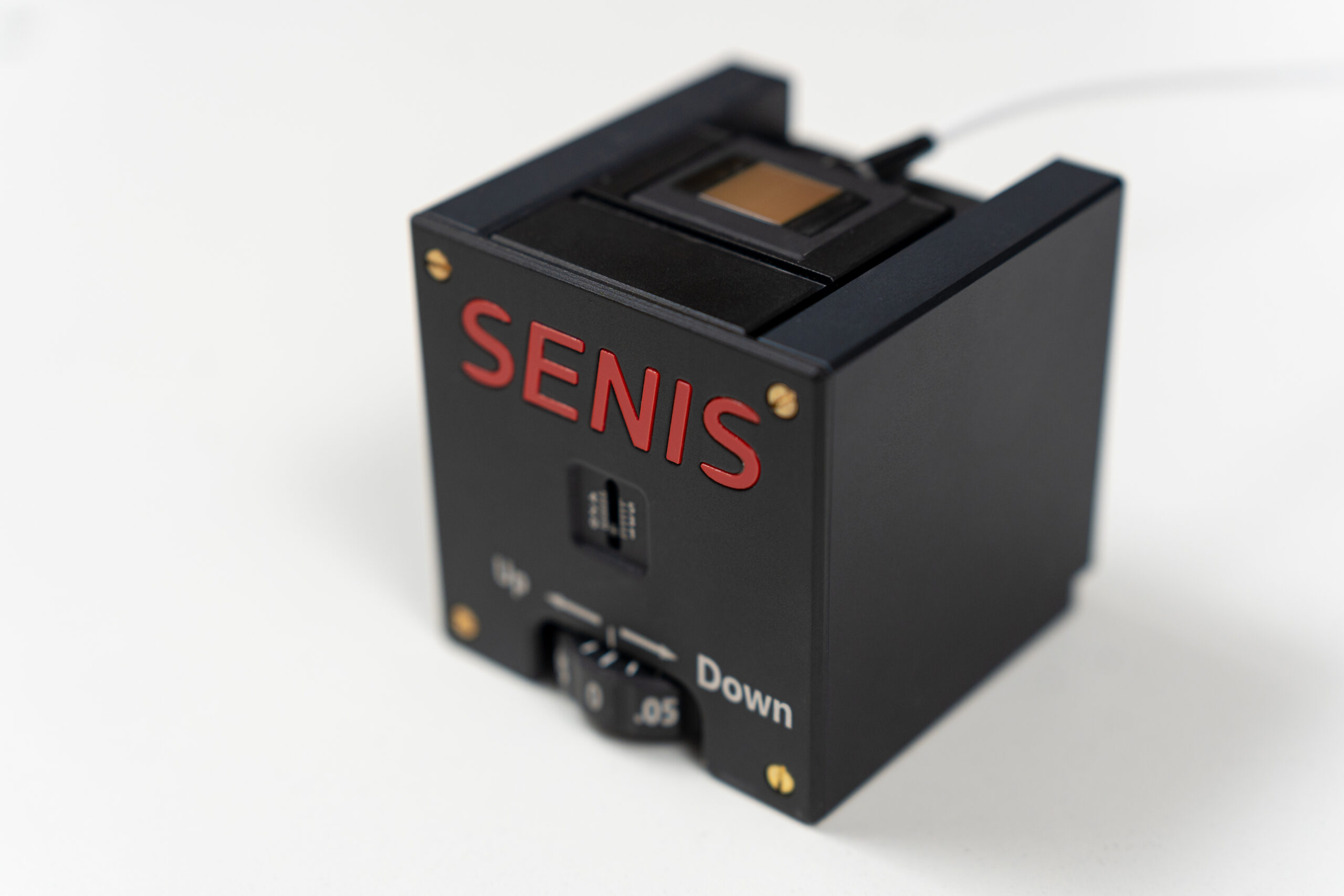

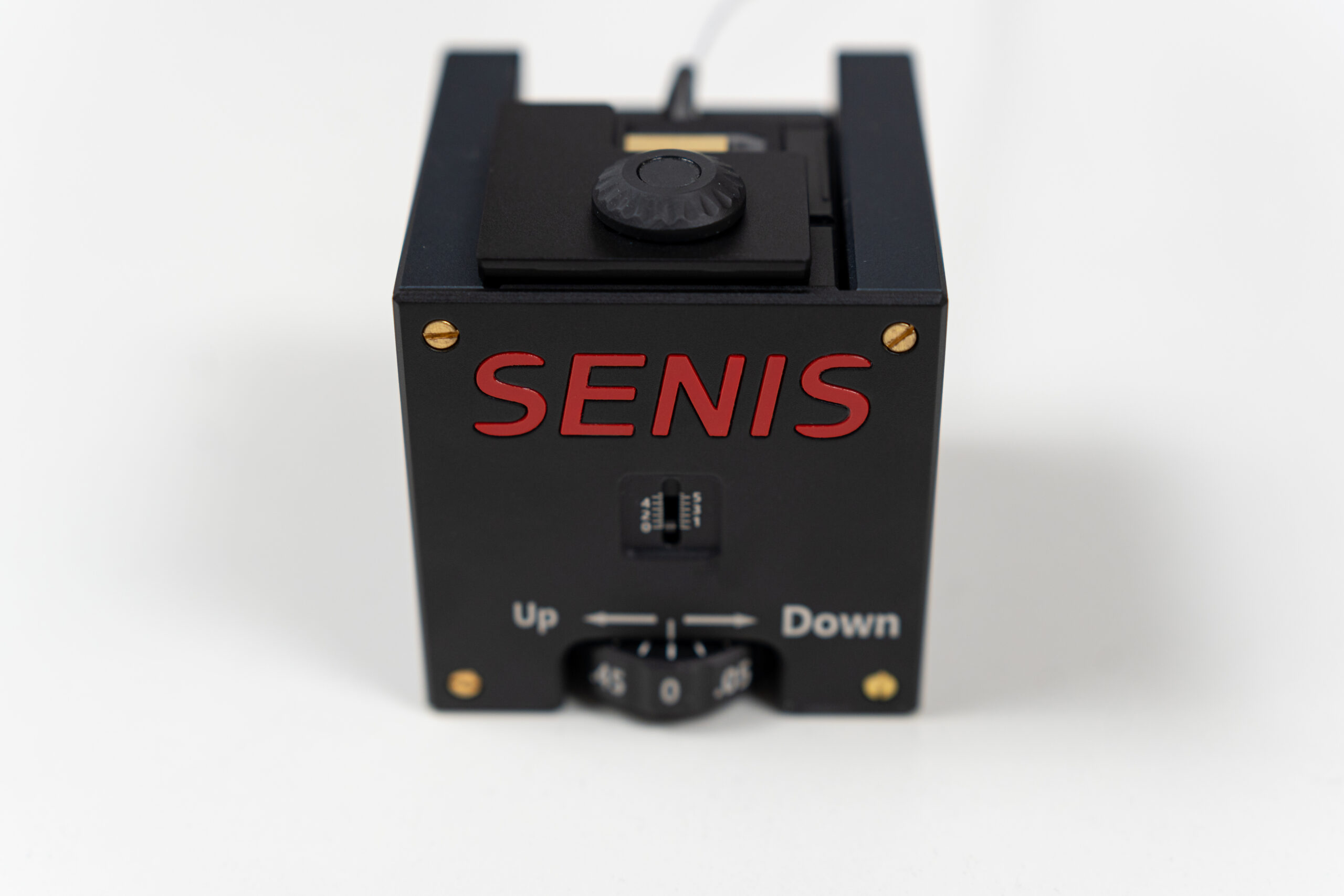

Checkbox	Sen-3D-MECH	Mechanical holder for the magnetic camera for repeatable positioning of the sample	Quantity	$8,744.00 Select Product	Description Mechanical holder for the magnetic camera for repeatable positioning of the sample Select Product Qty Select Quantity
Checkbox	SEN-3D-CAM-RECAL	SENIS 3D Magnetic Field Camera Service: – One recalibration in 12 months, – All software updates within 12 months, Note: – Annual fee	Quantity	$5,465.00 Select Product	Description SENIS 3D Magnetic Field Camera Service: – One recalibration in 12 months, – All software updates within 12 months, Note: – Annual fee Select Product Qty Select Quantity
Checkbox	SEN-3D-SPDR	Mechanical holder for SEN-3D-MECH and optical camera	Quantity	$510.00 Select Product	Description Mechanical holder for SEN-3D-MECH and optical camera Select Product Qty Select Quantity
