Bartington Fluxgate Magnetometer, 3-axis, Aerospace/Space
A range of 3-axis sensors which are specifically built and tested to operate in aerospace or space environment.

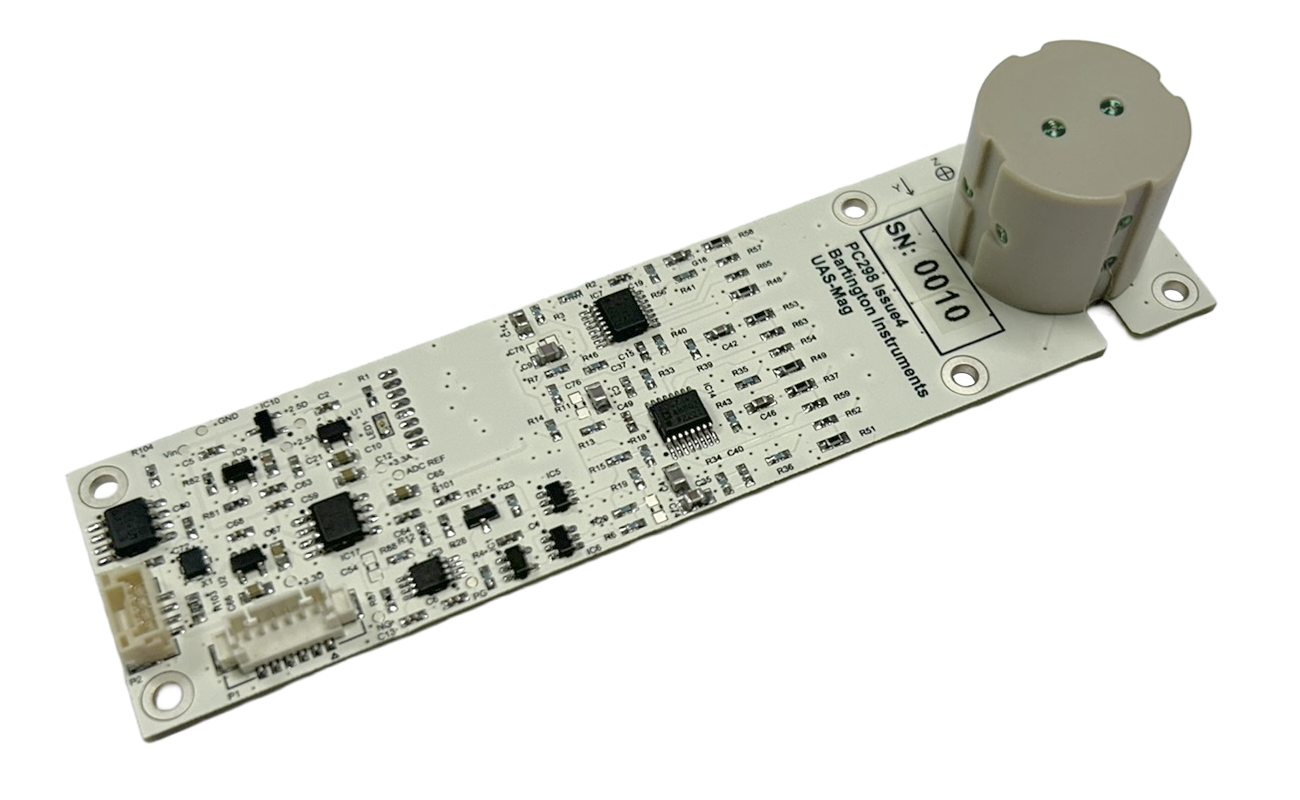

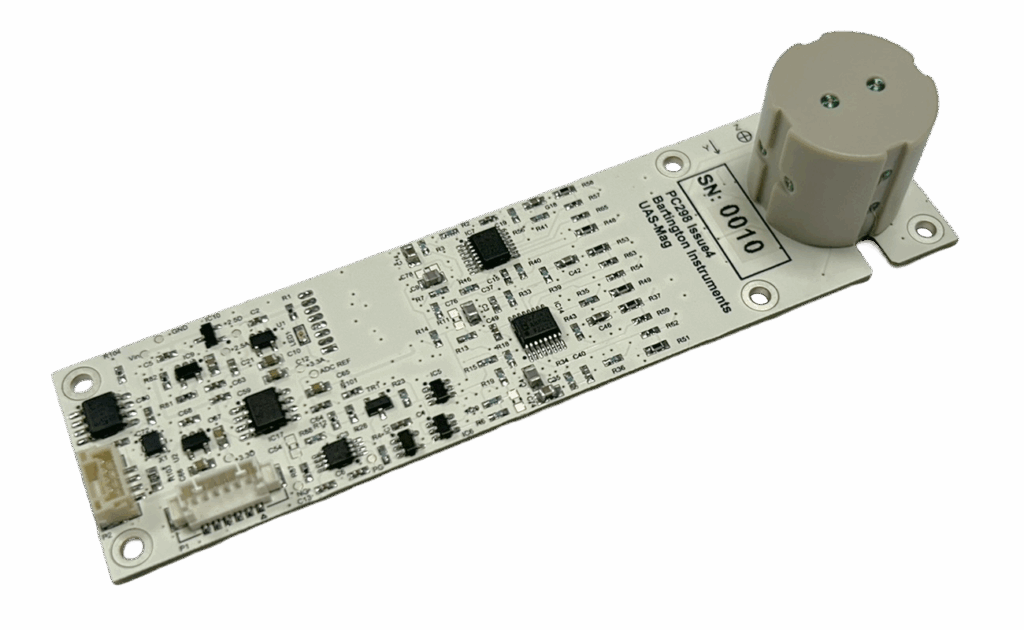

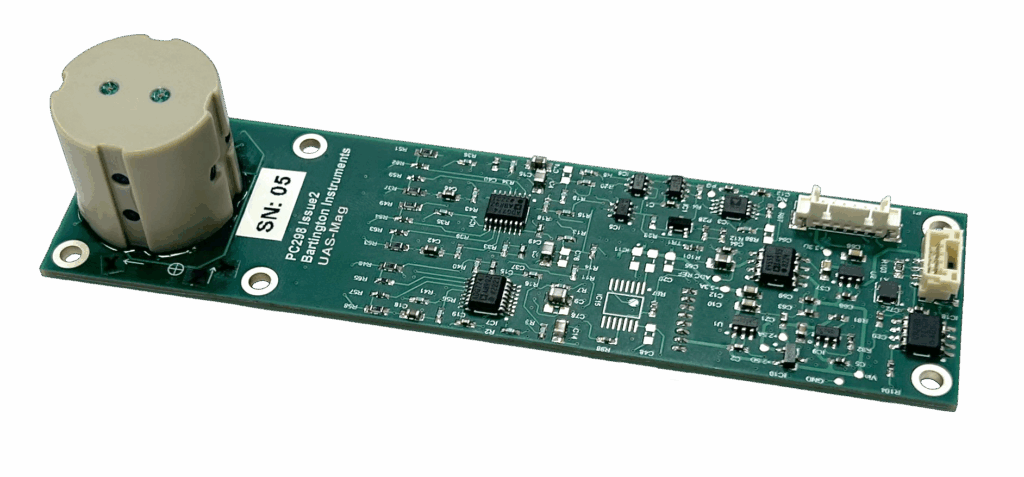

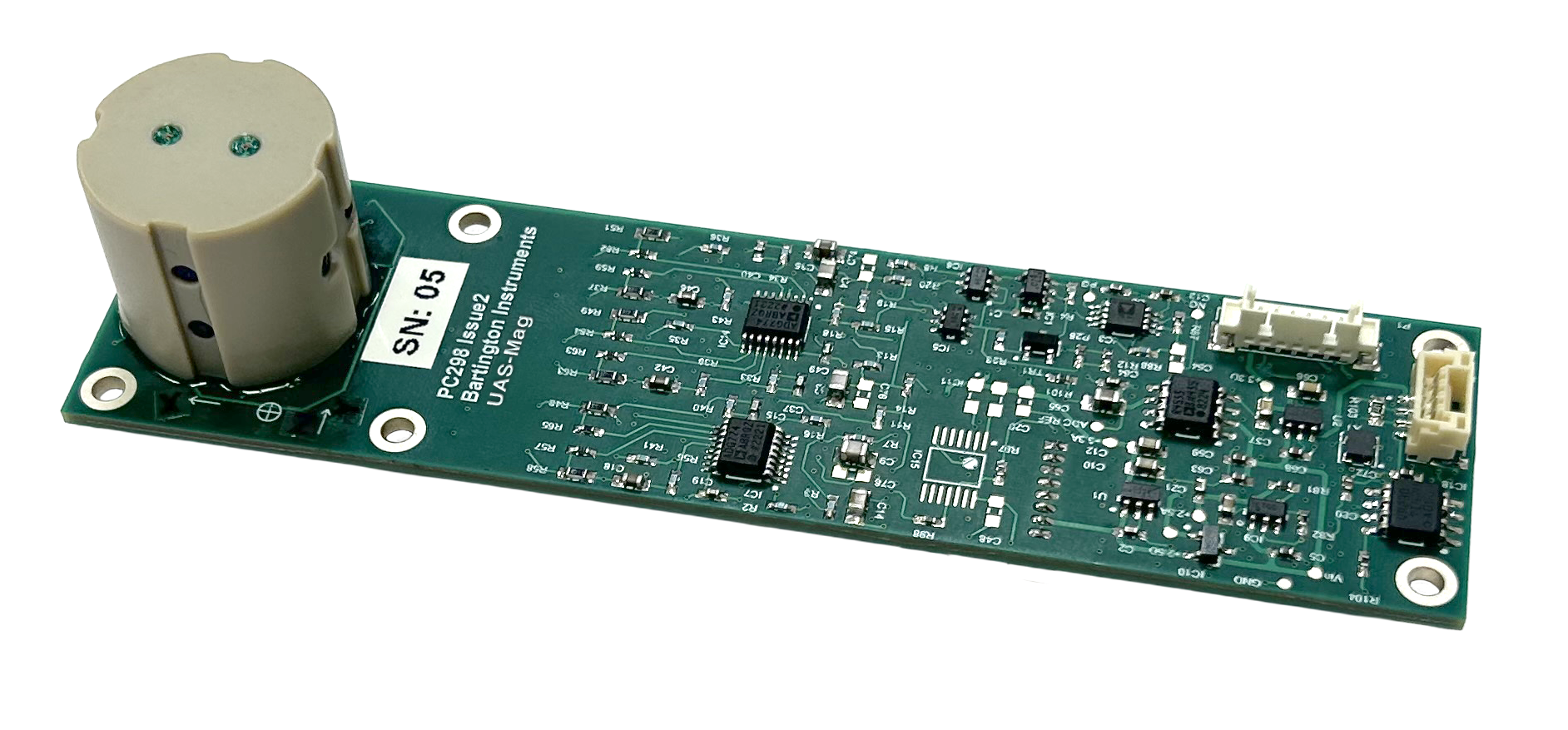

UAS-Mag is a lightweight digital fluxgate sensor specifically designed for integration in unmanned airborne platform. With DroneCan protocol interface, it can integrate with onboard computer. The sensor’s high performance means that the sensor can be used either for navigation applications or as a payload sensor to carry out magnetic surveys.
The Spacemag-Lite is ideal for a variety of low Earth orbit (LEO) missions. It has been designed using commercial off the shelf (COTS) components ensuring that costs are kept low. This makes Spacemag-Lite suitable for both commercial and scientific missions, where cost is a consideration.
The Mag669 is an unpackaged low noise sensor initially designed for use in Magnetic Anomaly Detection (MAD) from aircraft and drones. The sensor head has been tested to Mil-Std.
Features:

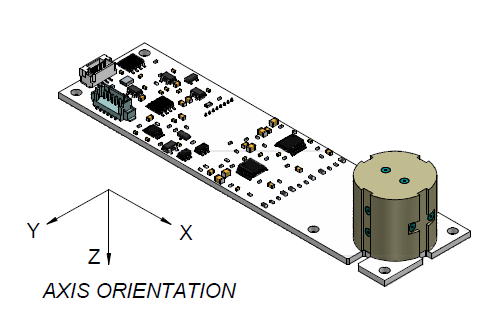

- Number of axes: Three (right hand XYZ coordinate system)
- Full-scale measuring range: ±60µT
- Bandwidth at -3dB: >1kHz
- Measurement noise floor:: 10 to ≤150pTrms/√Hz at 1Hz
- Operating Temperature: -55°C to +65°C TBC
- Dimensions: 20 x 20 x 20mm (±0.1mm) Cable length 2m when probe mounted remotely
Typical Applications:
- Spacecraft attitude sensing
- Geomagnetic field mapping
- Spacecraft magnetic signature measurement
Tech Support
Pricing
Spacemag Lite Three Axis Space Magnetometer
| Part No. | Description | Price | In Stock |
|---|---|---|---|
| Mag669 | Very Low Noise Unpackaged Three-Axis Aerospace Magnetometer | $14,820.00 | |
| Spacemag-Lite | 3-axis magnetic field sensor +/-60uT | $3,940.00 | |
| UAS-Mag | High Performance DroneCAN Compass | $2,230.00 |
| Calibration and Repair |
|---|
| For Calibration and Service, see Magnetic Field Calibration & Service. |
Terms and Conditions
Terms and Conditions:
Prices not inclusive of US tariffs on products manufactured in other countries. Tariffs rates effective at time of shipment will be added.
Prices above are for domestic deliveries to Canada, USA and Mexico only.
For deliveries in all other countries please contact Bartington.
Prices are expressed in U.S. Dollars, FCA San Carlos, California.
Prices are subject to change without notice.
Quantity and OEM discounts are available.
Payment:
Visa, MasterCard, Amex, Prepayment before shipment, or Net 30 days (subject to credit acceptance).
Delivery:
Stock to 90 days.
